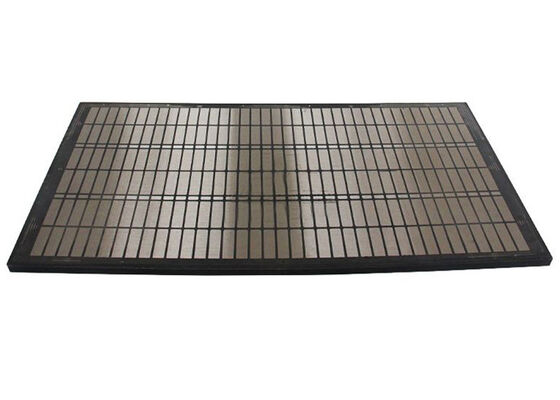

Composite Frame Screen Oil/Petroleum Shale Shaker Screen Media
Description of Composite Frame Screen:
Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
Specification of Composite Frame Screen:
| Screen Model | Range of Mesh | Dimension( Width x Length) |
| HT - 1/1 | 20-325 | 585×1165mm |
| HT - 1/2 | 20-325 | 585×1165mm |
| HT - 2/1 | 20-325 | 635×1250mm |
| HT - 2/2 | 20-325 | 635×1250mm |
| HT - 3 | 20-325 | 610×660mm |
Feature of Composite Frame Screen:
1. Every layer of wire cloth has different meshes,accurateky and reasonably making screening more micromesh.
2. High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole,greatly enhance the tolerable flow.
3. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .
4. Wire cloth is divided into several independent samall cloths to prevent excessive expansion of local damage.
5. Excellent high-strength composite frames enhance corrosion resistance, Have good shock absorption and extend working life of screen.
